Startseite /Produkte/Kompakter Luftschleier/S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors

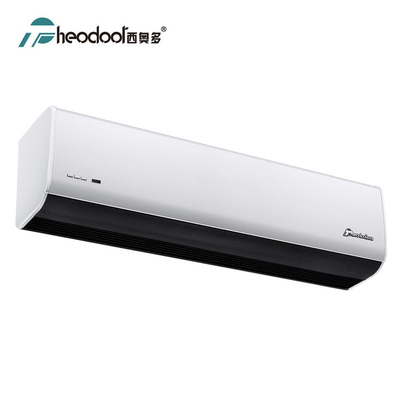

S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors

100
MOQ
S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Operating voltage: 230 VAC
Mounting type: Wall / Window Mount
Airflow: 2000m³/h
Weight: 15 KG
Fan type: Centrifugal type air curtain
Cover material: Aluminum air curtain
Power supply: 220-240/110V 50/60HZ
Fan speed: 2 Speeds
Control type: Button+Remote
Color: White
Input power: 200-400W
Air volume: 790-2360 m3/h
Air speed: 11.5-14.5 m/s
Noise level: <51-57 dB
Size range: 900-2000x198x215 mm
Hervorheben:

S7 Series air curtain 2000m³/h

,

wall mount air curtain 230V

,

compact air curtain for 2.3-3.2m doors
Grundinformation
Place of Origin: Guangdong, China
Markenname: Theodoor
Zahlung und Versand AGB
Produkt-Beschreibung
New Air Curtain Product S7 Series From 0.9m to 2m Door Centrifugal Fan
Premium Aluminum Alloy Design

Featuring an aluminum cover combined with ABS material, this air curtain offers a compact, elegant design that is lightweight, durable, and rust-resistant for long-term performance.

High Performance Air Delivery

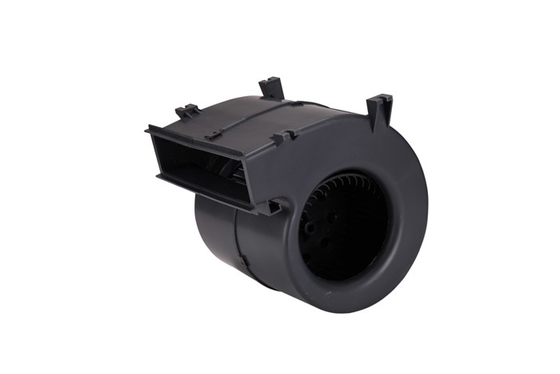

  • Compact size with powerful centrifugal turbine fans for high air velocity and low noise operation
  • Innovative turbine fan design increases air volume and pressure efficiency
  • Pure copper high-performance motor enables continuous operation for 8000+ hours
Advanced Shock Resistance

3N design (new air duct, new turbine fan, and new motor connection process) ensures superior shock resistance for safe transportation and reliable long-term use.

Intelligent Control System
  • Special air guide plate design with adjustable air direction for optimal air barrier

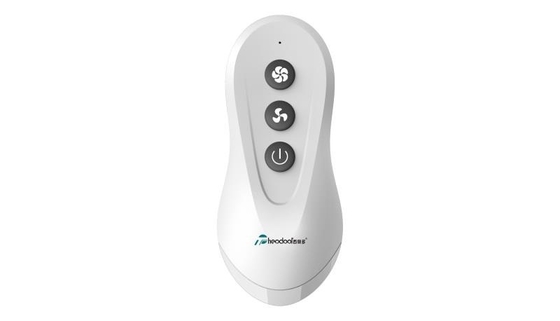

  • Available with remote control and key switch options
  • Selectable high and low air velocity settings
Technical Specifications
Model Voltage (V/HZ) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) Net Weight (Kg) Size (mm)
FM-3209-L/Y 220~50 200/170 1030/790 14.5/11.5 <51/<48 12 900×198×215
FM-3210-L/Y 220~50 210/180 1130/870 - <51/<48 12.5 1000×198×215
FM-3212-L/Y 220~50 260/230 1400/1080 - <52/<49 14.5 1200×198×215
FM-3215-L/Y 220~50 330/300 1780/1370 - <54/<52 18 1500×198×215
FM-3218-L/Y 220~50 390/360 2140/1640 - <56/<53 21.5 1800×198×215
FM-3220-L/Y 220~50 400/370 2360/1820 - <57/<55 24 2000×198×215
Recommended Applications
Ideal for door entrances in various commercial and public spaces with coverage for door heights of 2.5-3.2m.
Business Organizations:
Supermarkets, shopping malls, chain shops, department stores, hotels, restaurants		 Public Places:
Subways, airports, stations, bookstores, exhibition halls, stadiums, museums, commercial buildings, hospitals		 Entertainment Venues:
Movie theaters, clubs, bars, cafes, Internet bars, beauty shops
S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 0 S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 1
Why Choose Our Air Curtains
  • 18+ Years Experience: Manufacturer with extensive export experience and 100+ air curtain models for various environments
  • Professional Engineering: Dedicated R&D team focused on air curtain technology
  • Advanced Technology: State-of-the-art machinery ensures superior product performance and reliability
  • Quality Materials: Rigorous selection of materials for safety, efficiency, and environmental protection
  • Stringent Quality Control: 100% product performance testing before shipment
  • Cost-Effective: Long-life, high-reliability products deliver excellent value
  • Responsive Support: Prompt attention to customer queries and requirements
Product Images

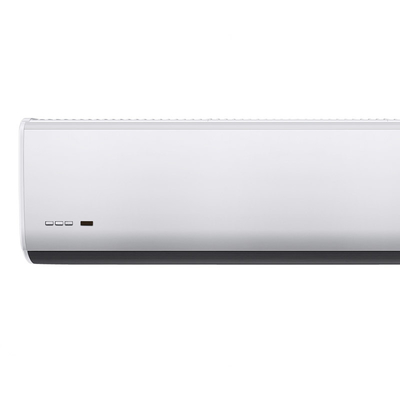

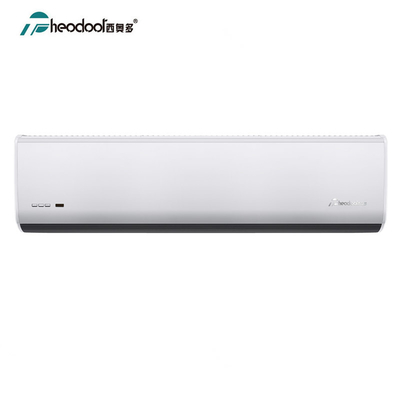

S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 2 S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 3
Company Information
S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 4 S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 5 S7 Series Air Curtain 2000m³/h 230V Wall Mount for 2.3-3.2m Doors 6
