Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes

50
MOQ
$399
Preis
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Montagetyp: Wand- / Fensterhalterung
Motortyp: Wechselstrommotor
Gewicht: 20 kg
Lüftertyp: Kreuzfluss
Motorstandard: IP54, explosionssicher
Stromversorgung: 380V/3N/50 HZ

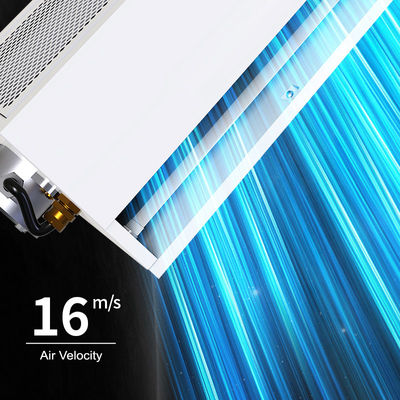

Luftgeschwindigkeit: 16 m/s
Abdeckmaterial: Stahl
Installationshöhe: 3-5m
Eingabemittel: 320W, 450W, 590W
Luftvolumen: 2420 m3/h, 3350 m3/h, 4280 m3/h
Geräuschpegel: ≤ 68 dB, ≤ 70 dB, ≤ 72 dB
Explosionssichere Note: Ex dbⅱc t4gb
Größenoptionen: 00,9 m, 1,2 m, 1,5 m
Fan Motoren Typ: AC
Hervorheben:

380V/3N/50 HZ Power Supply Air Curtain

,

16m/s Air Velocity Door Air Curtain

,

0.9m

,

1.2m

,

1.5m Size Explosion Proof Air Curtain
Grundinformation
Herkunftsort: Guangdong, China
Markenname: Theodoor
Zahlung und Versand AGB
Produkt-Beschreibung
Commercial and Industrial Explosion Proof Air Curtain
High-performance explosion-proof air curtain designed for gate sizes 0.9m, 1.2m, and 1.5m, suitable for hazardous environments in commercial and industrial applications.
Key Features

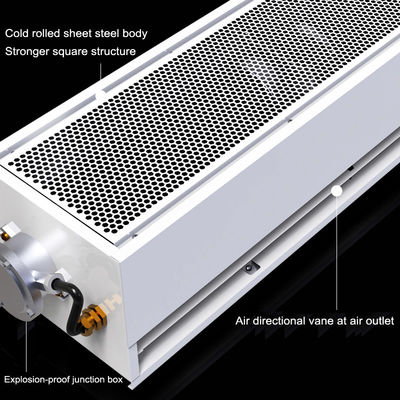

  • Robust Construction: All-metal powder-coated anti-rust thick body with square frame welded structure for enhanced durability and stability.
  • High-Performance Airflow: Metal cross-flow fan wheel delivers superior air volume, stable output, and effective isolation.
  • Certified Explosion-Proof: Complete unit and motor explosion-proof certified (N0.CJEx23.0770X, N0.CJEx23.0733X).

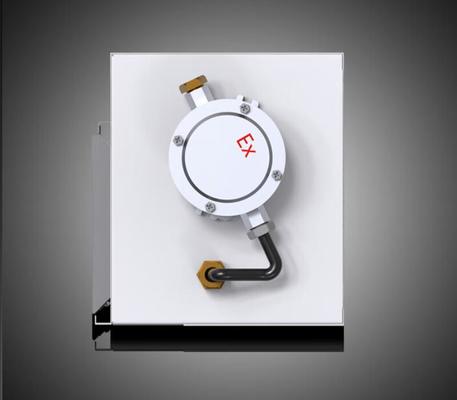

  • Advanced Safety: Equipped with explosion-proof terminal box and certified pure copper motor, tested for 8000+ hours without failure.
  • Superior Protection: Explosion-proof mark Ex dbⅡC T4Gb (higher grade than standard Ex dbⅡB T4 machines).
  • Versatile Applications: Suitable for Zone 1 & 2 explosive gas environments including biopharmaceutical facilities, chemical plants, laboratories, gas stations, and warehouses.
  • Installation Height: 3-5m optimal mounting range.
Technical Specifications
Model Size (mm) Voltage (V/Hz) Input Power (W) Air Volume (m³/h) Air Speed (m/s) Noise (dB) Net Weight (Kg)
FB-1509A 990×241×260 380V/50Hz 320 2420 16 ≤68 20
FB-1512A 1260×241×260 380V/50Hz 450 3350 16 ≤70 25
FB-1515A 1550×241×260 380V/50Hz 590 4280 16 ≤72 31
Product Images

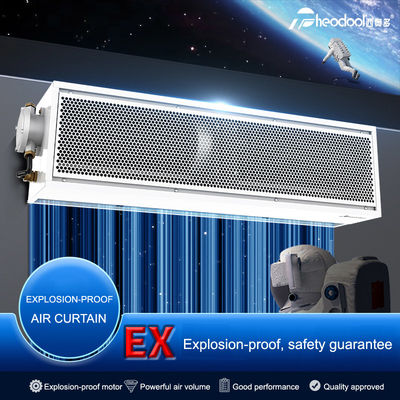

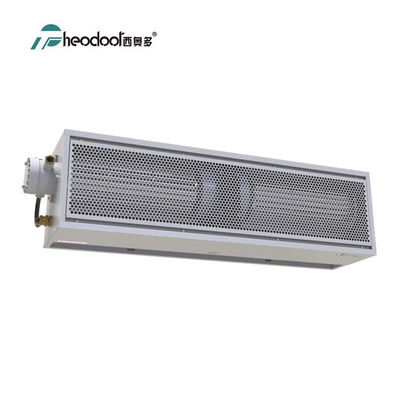

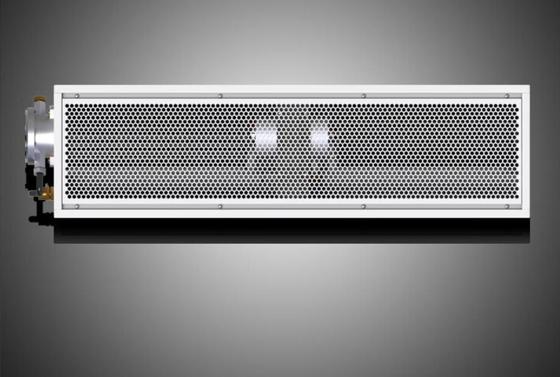

Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 0
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 1
Explosion Proof Air Curtain with 380V/3N/50 HZ Power Supply and 16m/s Air Velocity for 0.9m, 1.2m, 1.5m Door Sizes 2
Frequently Asked Questions
What are the main functions of an Air Curtain?
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
How to select the suitable air curtain?
Consider these factors when selecting an air curtain:
  • Application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Unit size and design
  • Noise level specifications
  • Power consumption
